Description

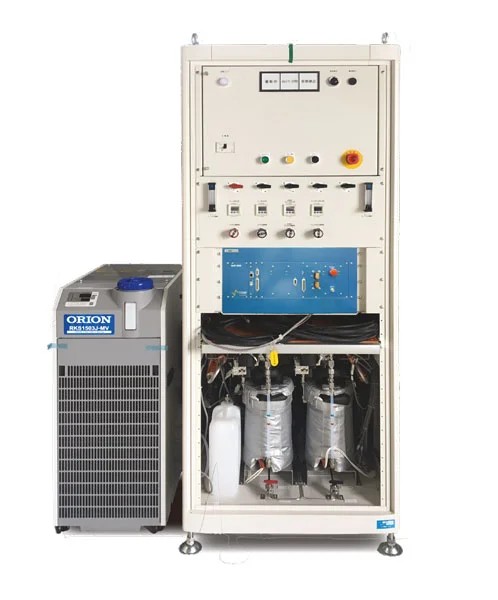

BluPEM-EL.
Electrolyzzer test station with fully native EIS capability
The BluPEM-EL is a complete PEM electrolyzer solution. In its standard configuration, it supports electrolysis cells up to 100 W, and can be customized for more powered cell or small stacks, it can thus covers nearly all single-cell formats. Whether you’re testing at low or high power, BluPEM delivers unmatched control and flexibility.
At the core of every Biologic fuel cell and electrolyzer workstation is a commitment to precise control — of every variable that affects electrochemical performance. Our systems combine world-class potentiostats with a high-performance fluidics architecture, ensuring reproducible conditions and reliable data from day one.
The DC and EIS characterization are done using BioLogic’s Premium or Essential Range Potentiostats, which makes BluPEM a fully native test station with electrochemistry techniques (EIS, CV…) from BioLogic.
Specifications
BluPEM-EL 100W Electrolysis test station:
- All in one test station for electrolysis for water or KOH solution
- Completely autonomous
- Liquid flow rate: 0.005 L/min to 0.1 L/min
- Flow accuracy: 5% of setting of full scale
- Optional conductivity measurement
- Optional gas flow measurement
- Cell temperature control: 10°C to 90°C
- Current range and EIS limits: dependent on paired potentiostat
