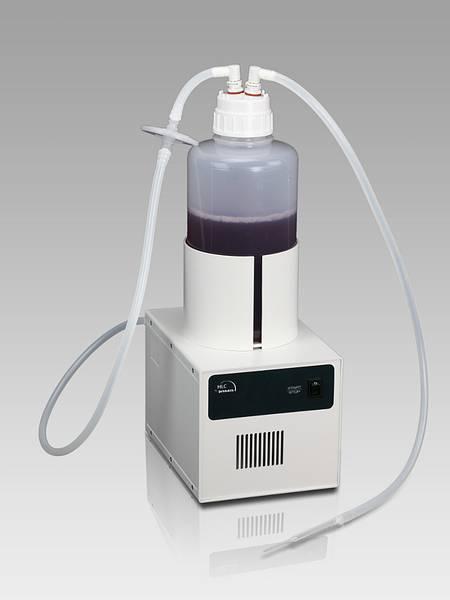

Compact aspiration systems AC 02 / 04

- The housing made of long living and easycare specially hard anodised aluminium with powerful membrane vacuum pump and mounted safety bottle holder made out of stainless steel as compact and space-saving unit.
- The membrane vacuum pump is integrated in the hosuing, perfectly adapted to the requirements; sucking the liquid very fast and leaves the solids untouched when handling is corret.
- The bottle with 2 or 4 litre content (depending on execution) is easy to handle.
- It consists of thick-walled, sturdy propylene and is autoclavable.
- The wide-necked screw cap has 2 fast locks which automatically close when the hose connections are loosened to the suction or vacuum side.
- The filled bottle thus is firmly closed and can be transported for disposal without danger.
- A ventilation element gives the necessary pressure equalization when autoclaving.
- A safety filter between collection bottle and the vacuum pump protects the pump and the surrounding.
- 3 m of silicone tubing make it possible that the collection bottle and the vacuum pump can be placed outside the Laminar Flow and thus do not diminsh the working area.
- A hose holder for attachment to Laminar Flow serves for comfortable handling.Thus the hose cannot slip away from the working place.


Handle AH 01 also can be used for the sytems AC to connect the different suction devices; however there is no automatic function here. With handle AM 01 the flow quantity can be controlled.
A recommended option is the foot-operated switch AF 01.


Vacuum pump



Suction capacity


15 l / min (air)

Final vacuum


100 mbar abs.

Material of pump head



Material of membrane









Dimensions (W x L x H)


170 x 220 x 155 mm

Height with bottle AL 02


439 mm

Height with bottle AL 04


508 mm



approx. 5 kg

Electric supply


115 V / 230 V, 50 Hz
