Corrosion Cell Kit

<< Back \| Potentiostat / Galvanostat			Item #Corrosion Cell Kit

Image #1.

Image #2.

Image #3.

Image #4.

Image #5.

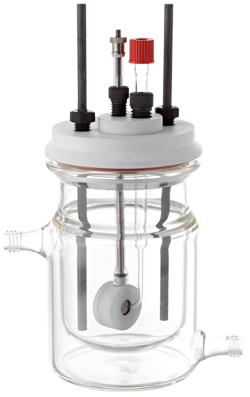

Standard corrosion cells For corrosion applications, two packages for large volume i.e. ~1 L are available:

- Basic corrosion cell kit, - Complete corrosion cell kit (allows temperature control and includes sample holder and cell stand).
The sample holder (092-C-013) can hold a sample of 10 mm thickness and with an outer diameter between 11.3 and 15.4 mm. The connection between the sample holder and the sample is made of stainless steel. The outer diameter and the sample holder thickness are 3.5 cm and 2 cm, respectively.

		Catalog No.	Basic corrosion cell kit EL-CORR-1	Complete corrosion cell kit EL-CORR-2
Glass cell 1L		EL-C-001	X
Double jacketed glass cell 1L		EL-C-002		X
PTFE cap		EL-C-003	X	X
PTFE ring (silicon encapsulated), OD 10.2 cm		EL-C-004	X	X
Cell Collar with clamp		EL-A-005	X	X
Double purge tube		EL-C-006		X
Graphite counter electrode rod (2 pieces)		EL-C-009	X	X
Double nut 25 mm and 12 mm diameter		EL-C-011		X
Telescopic cell stand		EL-C-012		X
Sample holder 1 cm², maximum thickness of sample 10 mm, diameter included between 11.3 mm to 15.4 mm		092-C-013		X
Purge tube		EL-C-016	X
Bridge tube for 8 mm diameter reference electrode		EL-C-017	X	X
Calomel reference electrode length 80 mm, OD 8 mm screw cap		R-XR110	X	X
Cable connection for screw cap 10 cm, 2 mm banana plug		R-A94L111	X	X
12 mm OD conical rings for reference electrode of 8 mm		R-X31M012	X	X

Options
Bridge tube for 6 mm diameter reference electrode		EL-C-008
PT100 probe (indicate connector type)		EL-C-014
Magnetic stirrer & heater, without PT100 probe	220 V	EL-C-015A
	110 V	EL-C-015B
Aluminum base holder for magnetic stirrer		EL-C-018
Set of 10 porous glass frits diameter 4 mm (CoralPor*) + heat shrink PTFE		092-VYC4
*CoralPor is a porous glass frit like Vycor.

Avesta cell

Avesta cell is an electrochemical cell developed for pitting corrosion testing (ASTM G150). It is designed to avoid microcrevice corrosion formed between the working electrode and the gasket at the bottom aperture of the cell. A filter paper ring placed between the sample and the gasket is flooded by distilled water in order to eliminate crevice corrosion. The water flow is controlled by a peristaltic pump(EL-AV-008) which delivers 0.5 to 5 mL/h.

Contents
Double jacketed cell glass 250 mL	EL-AV-002
PTFE cap 5 holes	EL-AV-003
O-ring PTFE silcone encapsulated	EL-AV-004
Cell collar with clamp	EL-A-005
Double purge tube	EL-AV-006
Filter paper ring (100 units)	EL-AV-007
Graphite counter electrode rods (2 pieces)	EL-C-009
Bridge tube for RE 6 mm	EL-AV-010
Double nut	EL-C-011
Telescopic cell stand	EL-AV-012
Skeleton	EL-AV-015

Options
Peristaltic pump for low flow	EL-AV-008
Bridge tube for reference electrode with OD of 8 mm	EL-AV-013
Single purge tube	EL-AV-014
Temperature probe PT 100	EL-C-014
Set of 10 porous glass frits diameter 4 mm (CoralPor*) + heat shrink PTFE	092-VYC4
*CoralPor is a porous glass frit like Vycor.
Flat cells, 1 or 10 cm² Sample area

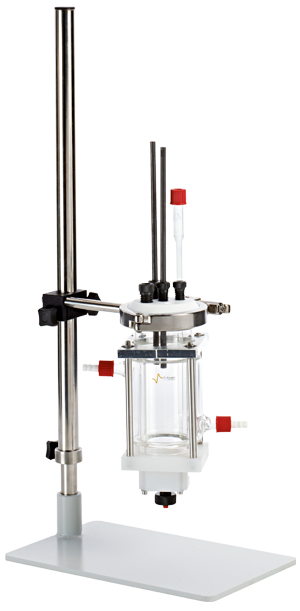

This cell with a volume of 250 mL is adapted to perform AC or DC experiments on flat specimen of 1 cm² or 10 cm² area. This cell has a double jacket for temperature control and three holes for reference electrode, purge tube and temperature probe with inner diameter of 17.6 mm and the two others of 8.3 mm. Thanks to its design, any sample with a thickness inferior to 1 cm fits in the holder.

	Catalog No.	Flat cell 1 cm² EL-FLAT	Flat cell 10 cm² EL-FLAT-2
Complete cell for flat sample 1 cm²	EL-FLAT-3	X
Complete cell for flat sample 10 cm²	EL-FLAT-4		X
Bridge tube	EL-F-004	X	X
Platinum gauze counter electrode	A-702439	X	X
SCE reference electrode	A-002056	X	X

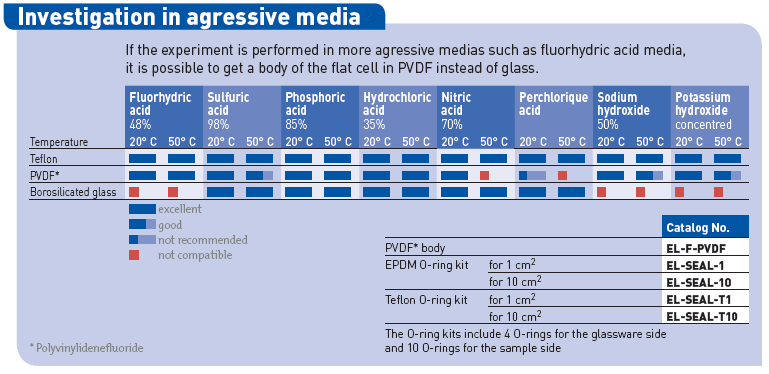

Coating Cell

The ?Coating cell? is an affordable cell especially dedicated for testing flat coated material samples. The coating cell consists of a glass tube mounted on a square nylon base (100 cm2). In order to avoid solution leakage, an O-ring is placed between the tested sample and the bottom of the glass body.

Reference electrode and vinyl masks are proposed as an option. Three test areas of sample (exposed to solution) can be studied: 10 cm2, 3 cm2 and 1 cm2. These surfaces are delimited by 40 mm x 40 mm vinyl mask with a hole of 10 cm2, 3 cm2, 1 cm2. The vinyl mask should be placed on the sample.

The working electrode is a thin flat sample with a maximum thickness of 10 mm. For a thick flat sample, the paint cell can be used without the nylon base.

The counter electrode, (inserted through the top of rubber cover) is provided with the cell.

The coating cell is not recommended for strong acids and bases because of the low chemical resistance of the rubber cover and that of the O-ring.

Main Specifications:

- Vial volume: 50 mL

- Active area: 1 cm2, 3 cm2 and 10 cm2

- Sample size: square sample with a side length higher than Lmin = 4.0 cm

A part of the working electrode must be outside of the nylon base in order to connect the sample to the potentiostat (electrical contact with alligator clip). Because of the short length of the reference electrode, it is recommended to use a bridge tube if the volume of solution inside the paint cell is lower than 50 mL.

Ordering Information

The coating cell kit contains the parts below:

			Catalog No.
Coating Cell Kit			EL-COAT
Contents
Glass for Coating cell			EL-P-002
Nylon base with three feets			EL-P-003
Rubber cup with two holes			EL-P-004
Metallic clamp			EL-P-005
O-ring for Coating Cell			EL-P-006
Graphite rod counter electrode (L 145 mm, OD 6 mm)			EL-P-009
Options
Ag/AgCl reference electrode (OD = 6 mm)			A-012167
Bridge tube for 6 mm reference electrode			EL-P-008
Mask for 1 cm2 (20 units)			EL-P-011
Mask for 5 cm2 (20 units)			EL-P-012
Mask for 10 cm2 (20 units)			EL-P-013

	Plate material evaluating cell, up to 1 cm² sample area

	This cell was developed to evaluate a plate material such as a metal, semi-conducting plate?The sample plate is sandwiched between the two cell blocks. The reference electrode has to be purchased separately for example, A-012167 or A-012171.

				Catalog No.
	Plate material evaluating cell			A-011951

	Contents:
		PTFE cell [body &base]		-
		O-ring		-
		screw 20 mm		-
		purging tube, 1 m		-
		Pt counter electrode		A-002222
