Reference Electrodes

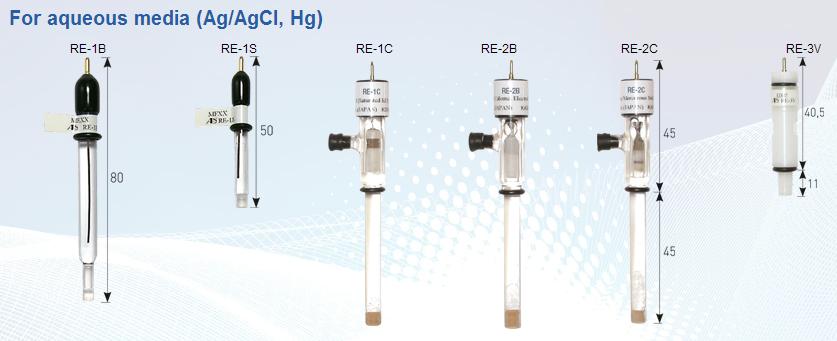

For aqueous media (Ag/AgCl, Hg)


	Catalog No.	Junction	Electrolyte	Purpose
RE-1B silver, silver chloride reference electrode, OD 6 mm	A-012167	vycor glass	3 M NaCl	SVC-2, SVC-3, VC-4, bulk electrolysis, RRDE-3A, flat cell
RE-1S silver, silver chloride reference electrode, OD 4.5 mm	A-012168	vycor glass	3 M NaCl	SECM
RE-1C silver, silver chloride reference electrode, OD 6 mm	A-002058	ceramic	saturated KCl	SVC-2, SVC-3, VC-4, bulk electrolysis, RRDE-3A, flat cell
RE-3V silver, silver chloride reference electrode screw type, poly acetal resin	A-012169	vycor glass	3 M NaCl	for flow cell spectroelectrochemical cell SEC-3F
RE-3VP Ag/AgCl screw type electrode, PEEK resin	A-012170	vycor glass	3 M NaCl	for flow cell spectroelectrochemical cell SEC-3F
Ag/AgCl ink, 2 mL	A-011464	surface resistance: 0.2 /sq/25.4 µm viscosity: 50,000 ±10,000 CP @21.1 °C flash point: 82 °C		for micro CV cell, IDA measurment
RE-2B calomel reference electrode, OD 6 mm	A-002056	ceramic	saturated KCl	SVC-2, SVC-3, VC-4, bulk electrolysis, RRDE-3A, flat cell
RE-2C Hg2SO4 reference electrode, free from chloride, OD 6 mm	A-002057	ceramic	saturated K2SO4

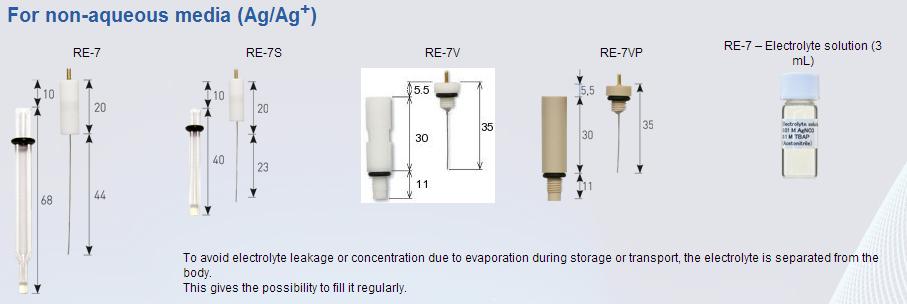

For non-aqueous media (Ag/Ag+)

To avoid electrolyte leakage or concentration due to evaporation during storage or transport, the electrolyte is separated from the body.
This gives the possibility to fill it regularly.


	Catalog No.	Junction	Electrolyte	Purpose
RE-7 non aqueous reference electrode (Ag/Ag+ ), OD 6 mm	A-012171	vycor glass	Ag/Ag+ /ACN/TBAP*	CV
RE-7S non aqueous reference electrode (Ag/Ag+ ), OD 4.5 mm	A-012172	vycor glass	Ag/Ag+ /ACN/TBAP*	SECM
RE-7V non aqueous reference electrode (Ag/Ag+ ) screw type, poly acetal resin	A-012173	vycor glass	Ag/Ag+ /ACN/TBAP*	flow cell
RE-7VP non aqueous reference electrode (Ag/Ag+ ) screw type, PEEK resin	A-012174	vycor glass	Ag/Ag+ /ACN/TBAP*	flow cell

* Acetonitrile
** Tetra Butyl Ammonium Perchlorate

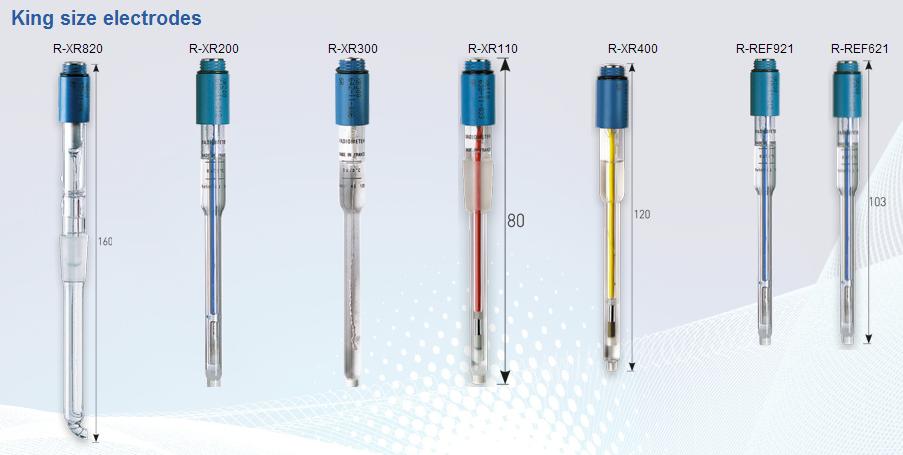

King size electrodes


		Catalog No.	Junction	Electrolyte	Purpose
Ag/AgCl reference electrode	length 120 mm, OD 8 mm	R-XR300	ceramic	sat KCl	CV
	length 160 mm, OD 8 mm	R-XR820	ceramic	sat KCl	EIS
Calomel reference electrode	length 103 mm, OD 7,5 mm	R-REF921	ceramic	LiCl	general (non aqueous)
	length 120 mm, OD 8 mm	R-XR110	ceramic	sat KCl	CV
Hg/Hg2SO4 reference electrode	length 103 mm, OD 8 mm	R-REF621	ceramic	sat K2SO4	chloride free
	length 120 mm, OD 8 mm	R-XR200	ceramic	sat K2SO4	CV
Hg/HgO reference electrode	length 120 mm, OD 8 mm	R-XR400	ceramic	0,1M KOH	CV

Options
Short connection cable for screw cap electrode length 10 cm with 2 mm male banana plug		R-A94L111*
Cable connection for Screw cap Electrode (1 m ? 4 mm banana plug)		R-CL111*
Cable connection for Screw cap Electrode (1 m ? 2 mm banana plug)		R-CRI9439*
12 mm OD conical rings for 8 mm OD electrodes (4 pieces)		R-X31M012
Bridge tube with ceramic junction	length: 70 mm, OD 12 mm	R-AL100
	length: 250 mm, OD 8 mm	R-AL110
	with reverse sleeve (non aqueous) length: 138 mm, OD 8 mm	R-AL210
	length: 138 mm, OD 8 mm	R-AL120

* R-A94L111, R-CL111 or R-CRI9439 connectors are strongly recommended to connect these reference electrodes to the potentiostat

Maintenance of Vycor-based reference electrode

Store your reference electrode immersed in the electrolyte. When it is not in use, the recommended way to maintain the reference electrode capability and lifetime, is to keep it in a sealed preservative vial with a solution. This storage solution should be identical to the filling solution of the reference electrode.


	Catalog No.
RE-PV preservative vial for reference electrode, 10 mL	A- 012108

Contents
PTFE cap for RE-PV	-
Screw vial 10 mL	-

Option
RE-7 electrolyte solution 10 mL	A-012549

Replace the porous glass frit when needed

Yellowish discoloration indicates contamination. This is caused by the adsorption of organic compounds into their pores.

	Catalog No.
Set of 10 porous glass frits diameter 2.8 mm (CoralPor*) + heat shrink PTFE (20 cm)	092-VYC3**
Set of 10 porous glass frits diameter 4 mm (CoralPor*) + heat shrink PTFE (20 cm)	092-VYC4***
*CoralPorTM is a porous glass frit like Vycor. - specific surface area 212 m2/g - pore diameter 7.8 nm - pore volume 0.21 cc/g
** 092-VYC3 for the reference electrodes : A-012167 ; A-012168 ; A-012171 ; A-012172 and for the bridge tube A-012176.
*** 092-VYC4 for the bridge tubes: EL-C-008 ; EL-A-008, EL-F-004, EL-F-004B, EL-C-017 ; EL-A-017.


Prevent contamination

To prevent contamination of the reference electrode, a sample holder can be used.

	Catalog No.
Bridge tube Ø 9.0 mm (2 pieces)	A-012177
Bridge tube Ø 9.0 mm (22 pieces)	A-012307
